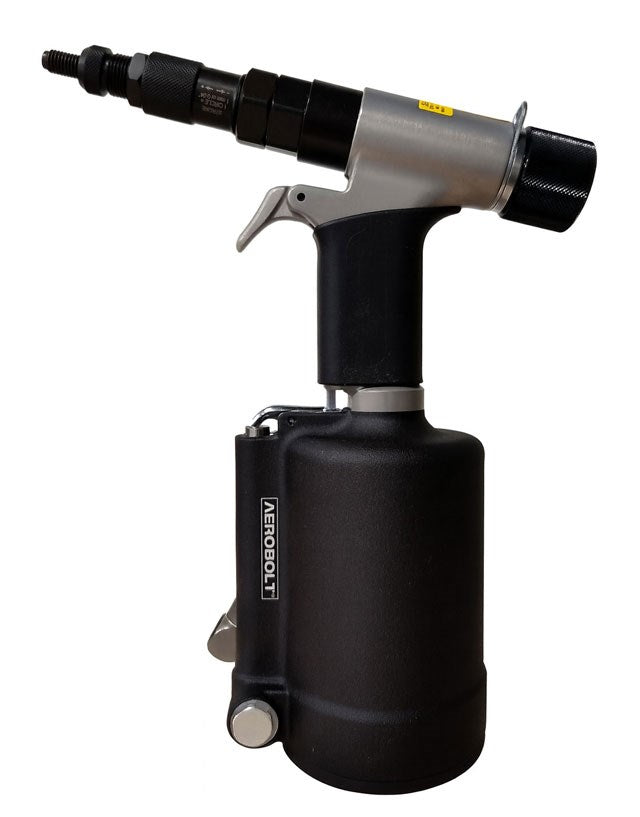

Air Nutsert Tool - Aerobolt's ANS120 M4-M12 Capacity + More.
Brands you know and trust - Aerobolt
The Aerobolt ANS120 delivers simple, powerful, cost-effective rivnut installation up to M12 across any material. Built for repair shops, maintenance stations, and low volume manufacturing, it features a 0–9 mm adjustable stroke and a controllable pull speed for safe, accurate work on sensitive components.
Key Specifications & Features
- Traction Force @ 6.2 bar (90 psi): 21,000 N (4,720 lbf)
- Traction Force @ 7.0 bar (100 psi): 23,500 N (5,280 lbf)
- Adjustable Stroke: 0–9 mm (0–0.36")
- Semi-automatic cycle: Hand spin → auto pull → hand spin
- Forged aluminium hydraulic oil cylinder with refill port
- Shock-reduction & noise-silencing design for smoother operation
- Twin air inlets for consistent supply
- Speed-adjustable swivel air fitting for controlled pull cycles
- Compatible sizes: M4, M5, M6, M8, M10, M12 rivet nuts
- Also installs rivstuds / threaded studs in M4, M5, M6 & M8 (attachments included)
The Aerobolt ANS120 delivers simple, powerful, cost-effective rivnut installation up to M12 across any material. Built for repair shops, maintenance stations, and low volume manufacturing, it features a 0–9 mm adjustable stroke and a controllable pull speed for safe, accurate work on sensitive components.
Key Specifications & Features
- Traction Force @ 6.2 bar (90 psi): 21,000 N (4,720 lbf)
- Traction Force @ 7.0 bar (100 psi): 23,500 N (5,280 lbf)
- Adjustable Stroke: 0–9 mm (0–0.36")
- Semi-automatic cycle: Hand spin → auto pull → hand spin
- Forged aluminium hydraulic oil cylinder with refill port
- Shock-reduction & noise-silencing design for smoother operation
- Twin air inlets for consistent supply
- Speed-adjustable swivel air fitting for controlled pull cycles
- Compatible sizes: M4, M5, M6, M8, M10, M12 rivet nuts
- Also installs rivstuds / threaded studs in M4, M5, M6 & M8 (attachments included)
| NUTSERT TOOL INSTALLATION GUIDE MODEL - NT-ANS120 |
THREAD SIZE | |||||||
| M4 | M5 | M6 | M8 | M10 | M12 | |||
| Aluminium | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| Steel | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| Stainless-Steel | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
The Aerobolt ANS120 delivers simple, powerful, cost-effective rivnut installation up to M12 across any material. Built for repair shops, maintenance stations, and low volume manufacturing, it features a 0–9 mm adjustable stroke and a controllable pull speed for safe, accurate work on sensitive components.
Key Specifications & Features
- Traction Force @ 6.2 bar (90 psi): 21,000 N (4,720 lbf)
- Traction Force @ 7.0 bar (100 psi): 23,500 N (5,280 lbf)
- Adjustable Stroke: 0–9 mm (0–0.36")
- Semi-automatic cycle: Hand spin → auto pull → hand spin
- Forged aluminium hydraulic oil cylinder with refill port
- Shock-reduction & noise-silencing design for smoother operation
- Twin air inlets for consistent supply
- Speed-adjustable swivel air fitting for controlled pull cycles
- Compatible sizes: M4, M5, M6, M8, M10, M12 rivet nuts
- Also installs rivstuds / threaded studs in M4, M5, M6 & M8 (attachments included)
| NUTSERT TOOL INSTALLATION GUIDE MODEL - NT-ANS120 |
THREAD SIZE | |||||||
| M4 | M5 | M6 | M8 | M10 | M12 | |||
| Aluminium | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| Steel | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| Stainless-Steel | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
