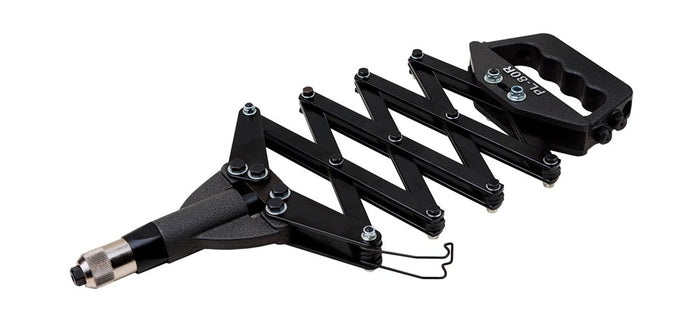

Concertina Hand Rivet Tool for Rivets Up to 1/4".

Brands you know and trust - Pull-Link®

Concertina manual rivet tool for rivet diameter up 6.4 mm (1/4') all material.

The RT-710 is a Pull-Link® hand rivet tool renowned for it's quality and great pulling force. A trellis type rivet tool that provides extra pulling force, also known as lazy tong riveter. Rivet setting capacity up to 6.4  mm (1/4') in all materials including; 3.2 mm (1/8'), 4.0 mm (5/32'), 4.8 mm (3/16') and 6.0 mm (7/32').

Rivet tool concertina type features.

  • Concertina design reduces physical force.
  • Moulded grip handle to avoid slipping.
  • Jaws & casing heat treated chrome steel.
  • Compact rivet tool for hard to reach applications.

Rivet Rite @ Aerobolt.


SELECT YOUR OPTIONS:

+

Product Code: RT-710

$185.90 Incl. GST

Concertina manual rivet tool for rivet diameter up 6.4 mm (1/4') all material.

The RT-710 is a Pull-Link® hand rivet tool renowned for it's quality and great pulling force. A trellis type rivet tool that provides extra pulling force, also known as lazy tong riveter. Rivet setting capacity up to 6.4  mm (1/4') in all materials including; 3.2 mm (1/8'), 4.0 mm (5/32'), 4.8 mm (3/16') and 6.0 mm (7/32').

Rivet tool concertina type features.

  • Concertina design reduces physical force.
  • Moulded grip handle to avoid slipping.
  • Jaws & casing heat treated chrome steel.
  • Compact rivet tool for hard to reach applications.
RIVET GUN
INSTALLATION GUIDE
RT-710
RIVET DIAMETER
STANDARD RIVETS HUCK STRUCTURAL RIVETS
2.4 3.2 4.0 4.8 6.0 6.4 4.8 6.4 7.9 9.5
Aluminium
Steel
Stainless

How to use a concertina rivet tool.

Lazy Tong Hand Rivet Tool. How to Use.






  Riveter, rivet, metal work, construction, tool, wood, metal, plastic, wonkee donkee, DIY.   As with all riveters, it’s important to ensure you use rivets of the correct size for the nozzle.

  Riveter, rivet, metal work, construction, tool, wood, metal, plastic, wonkee donkee, DIY.

Step 1 – Open riveter.

Place your dominant hand on the handle of the riveter and your non-dominant hand on the nozzle.

Pull the ends in opposite directions to fully open the lattice.



  Riveter, rivet, metal work, construction, tool, wood, metal, plastic, wonkee donkee, DIY.

Step 2 – Place rivet

Place the mandrel of the rivet into the nozzle of the riveter.



  Riveter, rivet, metal work, construction, tool, wood, metal, plastic, wonkee donkee, DIY.

Step 3 – Slot rivet

Slot the body of the rivet into the hole of the material.



  Riveter, rivet, metal work, construction, tool, wood, metal, plastic, wonkee donkee, DIY.

Step 4 – Grab handle

Using your dominant hand, firmly grab the handle. You can place both hands on the handle for a more secure grip.



  Riveter, rivet, metal work, construction, tool, wood, metal, plastic, wonkee donkee, DIY.

Step 5 – Push riveter

Push the handle of the riveter forwards.



  Riveter, rivet, metal work, construction, tool, wood, metal, plastic, wonkee donkee, DIY.

Step 6 – Install rivet

Once you have pushed the handle as far as you can, you should hear a snapping sound which means that the mandrel has snapped off leaving the rivet with a second head.

If the rivet has not made a snapping noise, open and close the riveter again to make sure it installs correctly.



  Riveter, rivet, metal work, construction, tool, wood, metal, plastic, wonkee donkee, DIY.   The rivet should then have a second head (on the “blind” side of the pieces being fastened) holding the pieces of material together.


Concertina manual rivet tool for rivet diameter up 6.4 mm (1/4') all material.

The RT-710 is a Pull-Link® hand rivet tool renowned for it's quality and great pulling force. A trellis type rivet tool that provides extra pulling force, also known as lazy tong riveter. Rivet setting capacity up to 6.4  mm (1/4') in all materials including; 3.2 mm (1/8'), 4.0 mm (5/32'), 4.8 mm (3/16') and 6.0 mm (7/32').

Rivet tool concertina type features.

  • Concertina design reduces physical force.
  • Moulded grip handle to avoid slipping.
  • Jaws & casing heat treated chrome steel.
  • Compact rivet tool for hard to reach applications.
RIVET GUN
INSTALLATION GUIDE
RT-710
RIVET DIAMETER
STANDARD RIVETS HUCK STRUCTURAL RIVETS
2.4 3.2 4.0 4.8 6.0 6.4 4.8 6.4 7.9 9.5
Aluminium
Steel
Stainless

How to use a concertina rivet tool.

Lazy Tong Hand Rivet Tool. How to Use.






  Riveter, rivet, metal work, construction, tool, wood, metal, plastic, wonkee donkee, DIY.   As with all riveters, it’s important to ensure you use rivets of the correct size for the nozzle.

  Riveter, rivet, metal work, construction, tool, wood, metal, plastic, wonkee donkee, DIY.

Step 1 – Open riveter.

Place your dominant hand on the handle of the riveter and your non-dominant hand on the nozzle.

Pull the ends in opposite directions to fully open the lattice.



  Riveter, rivet, metal work, construction, tool, wood, metal, plastic, wonkee donkee, DIY.

Step 2 – Place rivet

Place the mandrel of the rivet into the nozzle of the riveter.



  Riveter, rivet, metal work, construction, tool, wood, metal, plastic, wonkee donkee, DIY.

Step 3 – Slot rivet

Slot the body of the rivet into the hole of the material.



  Riveter, rivet, metal work, construction, tool, wood, metal, plastic, wonkee donkee, DIY.

Step 4 – Grab handle

Using your dominant hand, firmly grab the handle. You can place both hands on the handle for a more secure grip.



  Riveter, rivet, metal work, construction, tool, wood, metal, plastic, wonkee donkee, DIY.

Step 5 – Push riveter

Push the handle of the riveter forwards.



  Riveter, rivet, metal work, construction, tool, wood, metal, plastic, wonkee donkee, DIY.

Step 6 – Install rivet

Once you have pushed the handle as far as you can, you should hear a snapping sound which means that the mandrel has snapped off leaving the rivet with a second head.

If the rivet has not made a snapping noise, open and close the riveter again to make sure it installs correctly.



  Riveter, rivet, metal work, construction, tool, wood, metal, plastic, wonkee donkee, DIY.   The rivet should then have a second head (on the “blind” side of the pieces being fastened) holding the pieces of material together.
