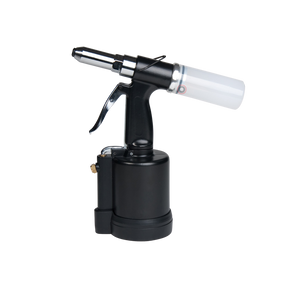

Air Riveter Tool - Aerobolt® RT-56 Tool For Low Volume Standard Rivets up to 6.4mm (1/4)
Brands you know and trust - Aerobolt®
The RT-56 Air Rivet Gun is a robust, lightweight and cost-effective pneumatic tool designed for low to medium-volume production, capable of installing standard pop rivets from 2.4 mm to 6.4 mm. With durable construction, a comfortable trigger, convenient mandrel collection bottle and suspension hook, it delivers reliable, straightforward riveting for workshops and general industrial applications.
Next-day delivery available to most Sydney areas, subject to availability and order timing.
Select Pickup at checkout. Collect from our Minto NSW warehouse once your order is ready.
$15 standard shipping for eligible Australia Post satchel orders. Other freight calculated at checkout.
Handy bulletproof reliable air rivet-tool for standard rivets.
If you seeking a robust economical "no frills" rivet tool that works well - this is it! Handy for low to medium volume production workshops, as this gun does not have rivet holding capacity or pin extraction system that make riveting work easier and are normally associated with the European tools. Check out the blog covering rivet guns.
RT-56 installs rivet diameters; 2.4mm (3/32), 3.2mm (1/8"), 4.0mm (5/32), 4.8mm (3/16), 6.4mm (1/4).
Rivet-Tool RT-56 Key Features.
- Quality construction, bulletproof reliability.
- Compact in size & lightweight.
- Balanced with large comfortable trigger.
- Convenient mandrel collection bottle.
- Suspension hook to lighten the load & more.
Rivet-ToolGun RT-50's Tool technical data; Pulling force; 7.0 kN. Pressure; 5.5-6.5 bar or 80-90 psi. Stroke; 14 mm. Dimensions 230 X 265 (L X H). Rivet tool comes with; Nose tips X 3, air fitting, oil syringe, Allen key, jaw holder, jaw (3 piece), jaw's follower, jaw's spacer (O ring), spring & manual.
| RIVET-TOOL INSTALLATION GUIDE MODEL - RT-56 |
RIVET DIAMETER | ||||||||||
| STANDARD RIVETS | HUCK STRUCTURAL RIVETS | ||||||||||
| 2.4 | 3.2 | 4.0 | 4.8 | 6.4 | 4.8 | 6.4 | 7.9 | 9.5 | |||
| Aluminium | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||
| Steel | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||
| Stainless-Steel | ✓ | ✓ | ✓ | ✓ | |||||||
Handy bulletproof reliable air rivet-tool for standard rivets.
If you seeking a robust economical "no frills" rivet tool that works well - this is it! Handy for low to medium volume production workshops, as this gun does not have rivet holding capacity or pin extraction system that make riveting work easier and are normally associated with the European tools. Check out the blog covering rivet guns.
RT-56 installs rivet diameters; 2.4mm (3/32), 3.2mm (1/8"), 4.0mm (5/32), 4.8mm (3/16), 6.4mm (1/4).
Rivet-Tool RT-56 Key Features.
- Quality construction, bulletproof reliability.
- Compact in size & lightweight.
- Balanced with large comfortable trigger.
- Convenient mandrel collection bottle.
- Suspension hook to lighten the load & more.
Rivet-ToolGun RT-50's Tool technical data; Pulling force; 7.0 kN. Pressure; 5.5-6.5 bar or 80-90 psi. Stroke; 14 mm. Dimensions 230 X 265 (L X H). Rivet tool comes with; Nose tips X 3, air fitting, oil syringe, Allen key, jaw holder, jaw (3 piece), jaw's follower, jaw's spacer (O ring), spring & manual.
| RIVET-TOOL INSTALLATION GUIDE MODEL - RT-56 |
RIVET DIAMETER | ||||||||||
| STANDARD RIVETS | HUCK STRUCTURAL RIVETS | ||||||||||
| 2.4 | 3.2 | 4.0 | 4.8 | 6.4 | 4.8 | 6.4 | 7.9 | 9.5 | |||
| Aluminium | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||
| Steel | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||
| Stainless-Steel | ✓ | ✓ | ✓ | ✓ | |||||||
