What's in the box

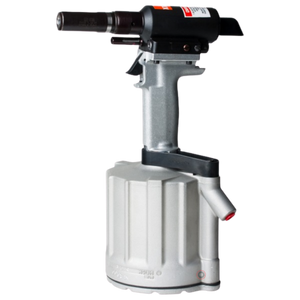

Huck® Air Gun 256 for Ø 7.9 & 9.5 mm (5/16 & 3/8) HuckBolt® and Structural Rivets
Brands you know and trust - Huck®
The Huck® 256 Hydraulic Installation Gun is a powerful, heavy-duty tool made in the USA, designed to install 7.9 mm (5/16") and 9.5 mm (3/8") Huck® Lockbolts and structural rivets using compatible nose assemblies. Featuring an optimised stroke for single-cycle installation, a concentric inline pull piston and plated piston rods for extended seal life, it delivers strong, reliable fastening performance for demanding fabrication and industrial applications.
MAIN INCLUSION:
Huck® Air Gun 256 for Huck Bolts & Structural Rivets - DIA 7.9 mm (5/16") & 9.5 mm ( 3/8")* (Gun Only).
Powerful Huck® Gun 256 designed for 7.9 & 9.5 mm diameter Huck® fasteners.
Made in the USA! The 256 Huck® gun is predominantly built for the installation of 7.9 mm (5/16") and 9.5 mm (3/8")
Product Code: HG-256
ADD GUN NOSE:
Huck® Bolt Magna-Grip® Nose 7.9mm (5/16)
Huck® Bolt Magna-Grip® Nose 9.5mm (3/8)
Pre-order
Huck® Rivet MagnaLok® Nose ML 7.9 mm (5/16)
Pre-order
Huck® Rivet MagnaLok® Nose ML 9.5mm (3/8)
Powerful Huck® Tool 256 designed for 7.9 & 9.5 mm diameter Huck® fasteners
Made in the USA, the 256 Huck® gun is predominantly built for the installation of 7.9 mm (5/16') & 9.5 mm (3/8') Huckbolt® (pin & collar) and Huck® structural rivets with the purchase of a nose assembly at an additional cost.
Huck® gun 256 key features
- High quality Huck®. Made in the USA
- Provides optimum stroke for one-cycle installations.
- Features a concentric (inline) pull piston
- Plated piston rods extend seal life.
- Nose Assemblies sold separately
Huck® Gun HG-256 technical data; nose assembly supplied separately (additional cost). Dimensions; 380 x 200 (H x L) measurements without nose. Weight; 5 kg. Pressure required: 6.21-6.9 bar or 90-100 psi. Huck fastener capacity: Huck bolts (pin & collar) and Huck structural Ø size 7.9 (5/16') & 9.5 mm (3/8') Stroke 22.35mm. Huck Gun pulling force; 44.4 kN. Huck® gun 256 comes with a manual, air line with rotating fittings, bleed bottle, bleed tool and reduction tube.
| HUCK® GUN INSTALLATION GUIDE HG-256 |
HUCK® FASTENER TYPE | |||||||||
| HUCK STRUCTURAL RIVETS DIAMETER | HUCK BOLTS PIN & COLLAR DIAMETER | |||||||||
| 4.8 | 6.4 | 7.9* | 9.5* | 4.8 | 6.4 | 7.9* | 9.5* | |||
| Aluminium | ✓ | ✓ | ✓ | ✓ | ||||||
| Steel | ✓ | ✓ | ✓ | ✓ | ||||||
| Stainless | ✓ | ✓ | ✓ | ✓ | ||||||
* Subject to correct nose assembly
Understanding Nose Assemblies
A nose assembly is the prerequisite attachment that installs either Huck bolts or Structural Rivets - in essence, the link between the Huck gun and the fastener. Huck guns require a nose and their selection depends on the tool, fastener, & diameter.
Lock Bolt guns and their interchangeable nose assemblies provide the versatility to install either a Structural Rivet or a Pin & Collar Huck bolt. At Aerobolt, we can assist with selection, here is an overview of the popular options associated with the HG-10256.
| Fastener Type | Diameter | Nose Assembly Product Code |
| Structural Rivets | 7.9 mm (5/16”) | 99-10HRVT |
| 9.5mm (3/8") | 99-12HRVT | |
| Huck Bolts "MG" | 7.9 mm (5/16”) | 99-10HBLT |
| 9.5mm (3/8") | 99-12HBLT |
Nose Assembly Maintenance.
Keep the nose in good operating condition requires a couple of key tasks:
- Keep nose assembly tight on tool piston.
- Clean nose assembly jaws on a regular basis by removing metal shards from the jaws and other locations with a suitable instrument.
Typical Huck Nose Assembly Cross Section.
Powerful Huck® Tool 256 designed for 7.9 & 9.5 mm diameter Huck® fasteners
Made in the USA, the 256 Huck® gun is predominantly built for the installation of 7.9 mm (5/16') & 9.5 mm (3/8') Huckbolt® (pin & collar) and Huck® structural rivets with the purchase of a nose assembly at an additional cost.
Huck® gun 256 key features
- High quality Huck®. Made in the USA
- Provides optimum stroke for one-cycle installations.
- Features a concentric (inline) pull piston
- Plated piston rods extend seal life.
- Nose Assemblies sold separately
Huck® Gun HG-256 technical data; nose assembly supplied separately (additional cost). Dimensions; 380 x 200 (H x L) measurements without nose. Weight; 5 kg. Pressure required: 6.21-6.9 bar or 90-100 psi. Huck fastener capacity: Huck bolts (pin & collar) and Huck structural Ø size 7.9 (5/16') & 9.5 mm (3/8') Stroke 22.35mm. Huck Gun pulling force; 44.4 kN. Huck® gun 256 comes with a manual, air line with rotating fittings, bleed bottle, bleed tool and reduction tube.
| HUCK® GUN INSTALLATION GUIDE HG-256 |
HUCK® FASTENER TYPE | |||||||||
| HUCK STRUCTURAL RIVETS DIAMETER | HUCK BOLTS PIN & COLLAR DIAMETER | |||||||||
| 4.8 | 6.4 | 7.9* | 9.5* | 4.8 | 6.4 | 7.9* | 9.5* | |||
| Aluminium | ✓ | ✓ | ✓ | ✓ | ||||||
| Steel | ✓ | ✓ | ✓ | ✓ | ||||||
| Stainless | ✓ | ✓ | ✓ | ✓ | ||||||
* Subject to correct nose assembly
Understanding Nose Assemblies
A nose assembly is the prerequisite attachment that installs either Huck bolts or Structural Rivets - in essence, the link between the Huck gun and the fastener. Huck guns require a nose and their selection depends on the tool, fastener, & diameter.
Lock Bolt guns and their interchangeable nose assemblies provide the versatility to install either a Structural Rivet or a Pin & Collar Huck bolt. At Aerobolt, we can assist with selection, here is an overview of the popular options associated with the HG-10256.
| Fastener Type | Diameter | Nose Assembly Product Code |
| Structural Rivets | 7.9 mm (5/16”) | 99-10HRVT |
| 9.5mm (3/8") | 99-12HRVT | |
| Huck Bolts "MG" | 7.9 mm (5/16”) | 99-10HBLT |
| 9.5mm (3/8") | 99-12HBLT |
Nose Assembly Maintenance.
Keep the nose in good operating condition requires a couple of key tasks:
- Keep nose assembly tight on tool piston.
- Clean nose assembly jaws on a regular basis by removing metal shards from the jaws and other locations with a suitable instrument.
Typical Huck Nose Assembly Cross Section.
Huck® Air Gun 256 for Ø 7.9 & 9.5 mm (5/16 & 3/8) HuckBolt® and Structural Rivets
From $9,339.00 Incl. GST
