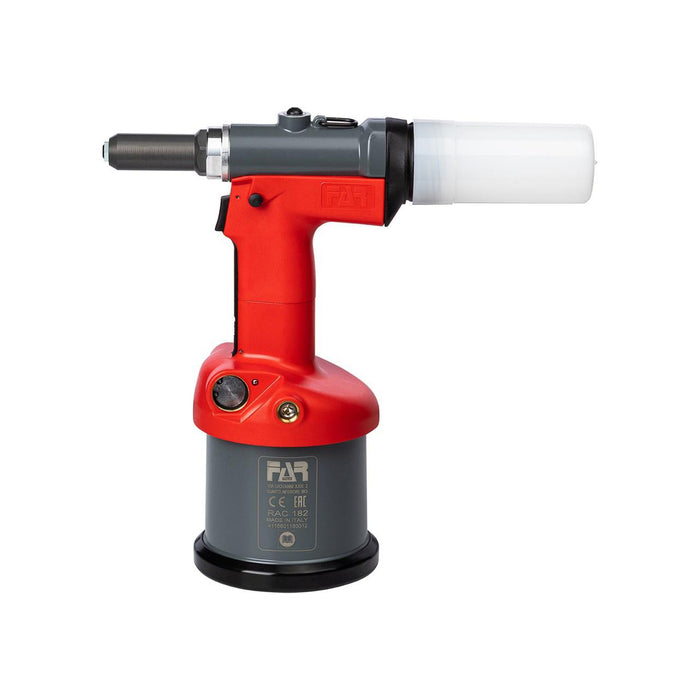

Lightweight Air Rivet Gun RAC182 from Far for Rivets up to 3/16 (4.8 mm)

Brands you know and trust - Far

  • One hand operation with rivet suction.
  • Fast installations with great setting force,
  • Amazing lightweight rivet gun at 1.7 kg.
  • Supported with stocked spare parts.
  • Mandrel vacuum collection system.

SELECT YOUR OPTIONS:

+

Product Code: RT-10182

$1,017.50 Incl. GST

Far® RAC Air Rivet Gun for Rivets up to 3/16” (4.8 mm) - RAC182.

The latest air rivet gun from our friends at Far®, an Italian tool that is ideal for high volume installation of rivet diameter 2.4 mm (3/32"), 3.2 mm (1/8”),  4.0 mm (5/32") and 4.8 mm (3/16”). This is a professional, lightweight tool that has numerous features to make your job easier; including fast single trigger installations, automatic suction & holding capacity, spent pintail extraction system, and lighter more compact than previous models. RAC182 is an easy-to-use tool that can install structural rivets such as Magna-Lok®Allok, Monobolt®, and Orlock® rivets with the purchase of an optional kit.

A key feature of this gun is the vacuum rivet holding and mandrel/pin extraction capacity. This means the gun vacuums up the rivet and holds it in place as you align it; and extracts the waste pin to the collection bottle after installation (you don't have to tilt the gun to push through the waste pin). Far® tools are renowned for being high quality European riveting guns that are trusted and supported by Aerobolt with stocked spare parts. Check out the rivet gun blog for selection information.

Far® Rivet Gun Key Features.

  • Impressive setting force for faster installation.
  • Vacuum rivet holding capacity even in the vertical position.
  • Well balanced. Lightweight, Compact & Easy to Use.
  • Vacuum extraction of spent mandrels & collection bottle.
  • Installs standard rivets with the capacity for structural rivets.

RT-10182 installs standard and structural rivet Ø from 2.4 mm (3/32"), 3.2 mm (1/8”),  4.0 mm (5/32") and 4.8 mm (3/16”).3.2 mm (1/8') to 4.8 mm (3/16') in all material.

Rivet Gun RT-10182 technical data. *Optional extra for Huck rivet 4.8 mm (3/16')  jaws and nose tip. Stroke; 21 mm. Pulling force 10.5 kN. Weight; 1.7 kg. Dimensions (H X L) 302 x 305 mm. Pressure: 6 bar 87 psi. Rivet gun comes with; 5 X nose tips, wrench, oil bottle, air fitting and manual.

RIVET GUN
INSTALLATION GUIDE
RT-10182
RIVET DIAMETER
STANDARD RIVETS HUCK STRUCTURAL RIVETS
2.4 3.2 4.0 4.8 6.0 4.8* 6.4 7.9 9.5
Aluminium
Steel
Stainless

* Works better with optional extra jaws and nose piece.

Authorised Far® Distributor. Quality Italian Rivet Tools by Far.

Far Rac182 Manual & Spare Parts

FAR Rac182 - User Guide FAR Rac182 - Maintenance and repair guide
FAR Rac182 - What to do if a pin becomes stuck FAR Rac182 - How to refill your oil FAR Rac182 - How to perform clamp maintenance
