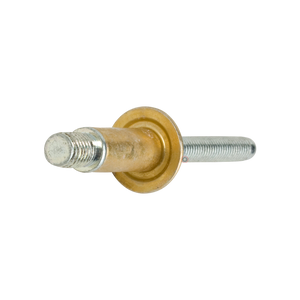

Huck Rivet Magna-Bulb

Brands you know and trust - Huck

Magna-Bulb Huck rivet for specific material depth applications.

Huck rivet "Magna-Bulb"  is renowned for its excellent clamping power in specific material grip ranges. Magna-Bulb produces a wide blind side footprint that is designed to spread the load, making them ideal when used in the fabrication of thin steel sheeting. Engineered to form a bulb directly on the sheet line, precisely where it's needed to prevent pull-through with first-class installation values, refer to the rivet's lab tab below for testing overview. Fast and easy to install using a  Huck air or cordless gun or a structural rivet gun, as a standard rivet gun does not have the correct jaws to install structural rivets. Check out the structural rivet blog.

Magna-Bulb structural rivet key features.

  • Locks material on both sides.
  • Neat compact blind side bulb.
  • Excellent shear and tensile strength.
  • Secure vibration resistant joints.
  • Enhanced weatherproof joint.

Authorised Huck Distributor Since 1993. Trust us with Huck


SELECT YOUR OPTIONS:

+

$0.00

Huck Rivet Magna-Bulb® is the best in its class structural rivet.

Magna-Bulb® Huck rivet is renowned for their excellent shear and tensile strength among most structural rivets on the market. When installed they produce a wide blind side footprint that is designed to spread the load, making them ideal when used in the fabrication of thin steel sheeting.

Magna-Bulb's have been engineered to form a bulb directly on the sheetline, precisely where it's needed, to prevent pull-through with first-class installation values, refer to the lab tab for a testing overview. Fast and easy to install using a  Huck air or cordless gun or a structural rivet gun, as a standard rivet gun does not have the jaws to install structural rivets. Check out the structural rivet blog.

Huck® Magna-Bulb® structural rivet key features.

  • Locks material on both sides.
  • Neat compact blind side bulb.
  • Excellent shear and tensile strength.
  • Secure vibration resistant joints.
  • Enhanced weatherproof joints.

Magna-Bulb® Applications.

Huck structural rivets Magna-Bulb have numerous uses which make them suitable for various applications such as; automotive manufacturing, aviation, electrical appliances & switchboards, Emergency vehicles, Farming equipment, HVAC (Heating, ventilation & air conditioning), Medical equipment, Military equipment & vehicles, Playground equipment, Sheet metal fabrication, Solar installations, Refrigeration, RV vehicles, Trucks & Trailers, Ute canopy bodies, Utility vehicles and so much more.

Authorised Distributor Since 1993. Trust us with Huck®

How Huck Rivet 'MB' Works.

LAB RIVET TESTING.

Which is the strongest structural rivet? The Magna-Bulb® & the Hucklok® have the most impressive shear & tensile results. Lab comparison is intended for indicative purposes only.

STRUCTURAL RIVET TYPE KEY LAB METRICS FOR STEEL 6.4MM (1/4")
Shear Typ. (kN) Tensile Typ. (kN) Grip Range (mm)
Magna-Lok® (HRDS-0806) 11.1 8.2 2.0 – 9.5
Hucklok® (HKLP-R8-6) 15.6 8.5 2.0 – 9.5
Magna-Bulb® (MBDS-0806) 16.0 8.9 5.8 – 7.8
Allok® (ARDS-08145) 13.7 7.9 5.0 – 8.5

Huck Rivet Magna-Bulb® is the best in its class structural rivet.

Magna-Bulb® Huck rivet is renowned for their excellent shear and tensile strength among most structural rivets on the market. When installed they produce a wide blind side footprint that is designed to spread the load, making them ideal when used in the fabrication of thin steel sheeting.

Magna-Bulb's have been engineered to form a bulb directly on the sheetline, precisely where it's needed, to prevent pull-through with first-class installation values, refer to the lab tab for a testing overview. Fast and easy to install using a  Huck air or cordless gun or a structural rivet gun, as a standard rivet gun does not have the jaws to install structural rivets. Check out the structural rivet blog.

Huck® Magna-Bulb® structural rivet key features.

  • Locks material on both sides.
  • Neat compact blind side bulb.
  • Excellent shear and tensile strength.
  • Secure vibration resistant joints.
  • Enhanced weatherproof joints.

Magna-Bulb® Applications.

Huck structural rivets Magna-Bulb have numerous uses which make them suitable for various applications such as; automotive manufacturing, aviation, electrical appliances & switchboards, Emergency vehicles, Farming equipment, HVAC (Heating, ventilation & air conditioning), Medical equipment, Military equipment & vehicles, Playground equipment, Sheet metal fabrication, Solar installations, Refrigeration, RV vehicles, Trucks & Trailers, Ute canopy bodies, Utility vehicles and so much more.

Authorised Distributor Since 1993. Trust us with Huck®

How Huck Rivet 'MB' Works.

LAB RIVET TESTING.

Which is the strongest structural rivet? The Magna-Bulb® & the Hucklok® have the most impressive shear & tensile results. Lab comparison is intended for indicative purposes only.

STRUCTURAL RIVET TYPE KEY LAB METRICS FOR STEEL 6.4MM (1/4")
Shear Typ. (kN) Tensile Typ. (kN) Grip Range (mm)
Magna-Lok® (HRDS-0806) 11.1 8.2 2.0 – 9.5
Hucklok® (HKLP-R8-6) 15.6 8.5 2.0 – 9.5
Magna-Bulb® (MBDS-0806) 16.0 8.9 5.8 – 7.8
Allok® (ARDS-08145) 13.7 7.9 5.0 – 8.5
