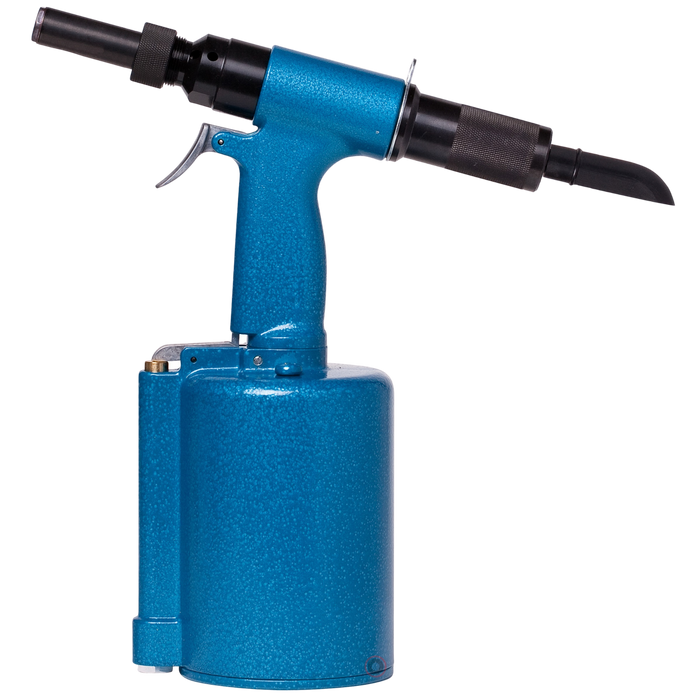

Huck Gun LH224 Air for Huck Bolts & Structural Rivets Ø 4.8 & 6.4 mm (3/16 & 1/4)+free first schedule service
Brands you know and trust - Huck®
Huck air gun for Huck Bolts & Structural Rivets.
The HG-LH224 is the workhorse of Huck guns, a solid aluminium alloy tool that can install both Huck Bolts and Structural rivets with the simple change over of a nose assembly (priced separately). Check the Huck® Gun blog.
The LH224 is suitable for vehicle fabrication workshops and smash repair operations. A versatile tool that can install 4.8mm (3/16") and 6.4mm (1/4") Huck bolts and a wide range of structural rivets. These include Magna-Lok®, HuckLok®, Allok® & so much more. Built tough to stand up to the most rigorous working conditions. Learn more by referring to the tabs below.
Huck LH224 air gun features+free first schedule service.
- High quality heavy duty alloy gun.
- Price inclusive of first 12 month schedule service.
- Fast pace with single trigger installs.
- Soft setting shockless technology.
- Installs Huck Lock Bolts & other LockBolts.
- Installs Structural Rivets Magna-Lok®, Allok® etc.
MAIN INCLUSION:
Huck Air Gun LH224 for Huck Bolts & Structural Rivets - DIA. 4.8 mm & 6.4 mm (Gun Only)
Huck air gun LH 224 for Huck Bolts & Structural Rivets.
The HG-LH224 is the workhorse of Huck guns, a solid aluminium alloy tool that can install both Huck Bolts and Structural rivets with…
Huck air gun for Huck Bolts & Structural Rivets.
The HG-10224 is the workhorse of Huck gun range, a solid aluminium alloy tool that can install both Huck Bolts and Structural rivets with the simple change over of a nose assembly (priced separately). Check the Huck® Gun blog.
The HG-10224 is suitable for truck fabrication workshops and smash repair operations. A versatile tool that can install 4.8mm (3/16") and 6.4mm (1/4") Huck bolts and a wide range of structural rivets. These include Magna-Lok®, Hucklok®, Allok®, Orlock® & so much more. Built tough to stand up to the most rigorous working conditions.
| HUCK AIR GUN INSTALLATION GUIDE HG-10224 |
HUCK FASTENER TYPE | |||||||||
| HUCK STRUCTURAL RIVETS DIAMETER | HUCK BOLTS PIN & COLLAR DIAMETER | |||||||||
| 4.8* | 6.4* | 7.8 | 9.5 | 4.8* | 6.4* | 7.9 | 9.5 | |||
| Aluminium | ✓ | ✓ | ✓ | ✓ | ||||||
| Steel | ✓ | ✓ | ✓ | ✓ | ||||||
| Stainless | ✓ | ✓ | ✓ | ✓ | ||||||
* Subject to correct nose assemblies.
Huck air gun features.
- High quality heavy duty alloy gun.
- Fast pace with single trigger installs.
- Soft setting shockless technology.
- Installs Huck Lock Bolts & other LockBolts.
- Installs Structural Rivets Magna-Lok, Allok, Orlock etc.
Understanding Nose Assemblies
A nose assembly is the prerequisite attachment that installs either Huck bolts or Structural Rivets - in essence, the link between the Huck gun and the fastener. Huck guns require a nose and their selection depends on the tool, fastener, & diameter.
Huck guns and their interchangeable nose assemblies provide the versatility to install either a Structural Rivet or a Pin & Collar Huck bolt. At Aerobolt, we can assist with selection, here is an overview of the popular options associated with the HG-10224.
| Fastener Type | Diameter | Nose Assembly Product Code |
| Structural Rivets | 4.8 mm (3/16”) | 99-06HRVT |
| 6.4mm (1/4") | 99-08HRVT | |
| Huck Bolts "MG" | 4.8 mm (3/16”) | 99-06HBLT |
| 6.4mm (1/4") | 99-08HBLT |
Nose Assembly Maintenance.
Keep the nose in good operating condition requires a couple of key tasks:
- Keep nose assembly tight on tool piston.
- Clean nose assembly jaws on a regular basis by removing metal shards from the jaws and other locations with a suitable instrument.
Typical Huck Nose Assembly Cross Section.
Huck air gun for Huck Bolts & Structural Rivets.
The HG-10224 is the workhorse of Huck gun range, a solid aluminium alloy tool that can install both Huck Bolts and Structural rivets with the simple change over of a nose assembly (priced separately). Check the Huck® Gun blog.
The HG-10224 is suitable for truck fabrication workshops and smash repair operations. A versatile tool that can install 4.8mm (3/16") and 6.4mm (1/4") Huck bolts and a wide range of structural rivets. These include Magna-Lok®, Hucklok®, Allok®, Orlock® & so much more. Built tough to stand up to the most rigorous working conditions.
| HUCK AIR GUN INSTALLATION GUIDE HG-10224 |
HUCK FASTENER TYPE | |||||||||
| HUCK STRUCTURAL RIVETS DIAMETER | HUCK BOLTS PIN & COLLAR DIAMETER | |||||||||
| 4.8* | 6.4* | 7.8 | 9.5 | 4.8* | 6.4* | 7.9 | 9.5 | |||
| Aluminium | ✓ | ✓ | ✓ | ✓ | ||||||
| Steel | ✓ | ✓ | ✓ | ✓ | ||||||
| Stainless | ✓ | ✓ | ✓ | ✓ | ||||||
* Subject to correct nose assemblies.
Huck air gun features.
- High quality heavy duty alloy gun.
- Fast pace with single trigger installs.
- Soft setting shockless technology.
- Installs Huck Lock Bolts & other LockBolts.
- Installs Structural Rivets Magna-Lok, Allok, Orlock etc.
Understanding Nose Assemblies
A nose assembly is the prerequisite attachment that installs either Huck bolts or Structural Rivets - in essence, the link between the Huck gun and the fastener. Huck guns require a nose and their selection depends on the tool, fastener, & diameter.
Huck guns and their interchangeable nose assemblies provide the versatility to install either a Structural Rivet or a Pin & Collar Huck bolt. At Aerobolt, we can assist with selection, here is an overview of the popular options associated with the HG-10224.
| Fastener Type | Diameter | Nose Assembly Product Code |
| Structural Rivets | 4.8 mm (3/16”) | 99-06HRVT |
| 6.4mm (1/4") | 99-08HRVT | |
| Huck Bolts "MG" | 4.8 mm (3/16”) | 99-06HBLT |
| 6.4mm (1/4") | 99-08HBLT |
Nose Assembly Maintenance.
Keep the nose in good operating condition requires a couple of key tasks:
- Keep nose assembly tight on tool piston.
- Clean nose assembly jaws on a regular basis by removing metal shards from the jaws and other locations with a suitable instrument.
Typical Huck Nose Assembly Cross Section.
