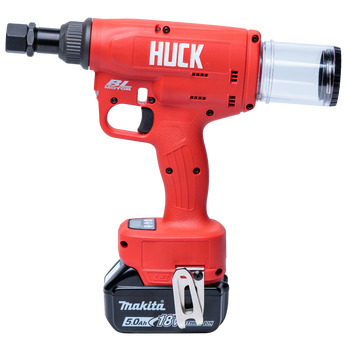

Cordless Huck Gun BV4500
Brands you know and trust - Huck
Cordless gun for both Huck bolts & Huck structural rivets diameter 4.8 & 6.4 mm (3/16 & 1/4).
NEW to Australia. Huck® has joined forces with Makita® to bring you a powerful battery gun for the installation of both Huck Bolt pin & collar along with Huck rivets. The only battery cordless with adjustable pull force control, this tool represents exceptional quality and reliability that has been tested to 50,000 installs. Refer to the technical tab below for more information. Seeking assistance with Huck gun selection? Go to the Huck gun blog here.
Huck cordless gun key features.
- High quality gun. Made in Japan.
- One trigger installation. LED pilot light.
- Brush less motor. Work harder live longer.
- Installs both Huck bolts and rivets*.
- Compatible with Makita® batteries & charger.
- Suitable for Huck nose assemblies*.
Authorised Huck® Distributor Since 1993. Trust us with Huck®
MAIN INCLUSION:

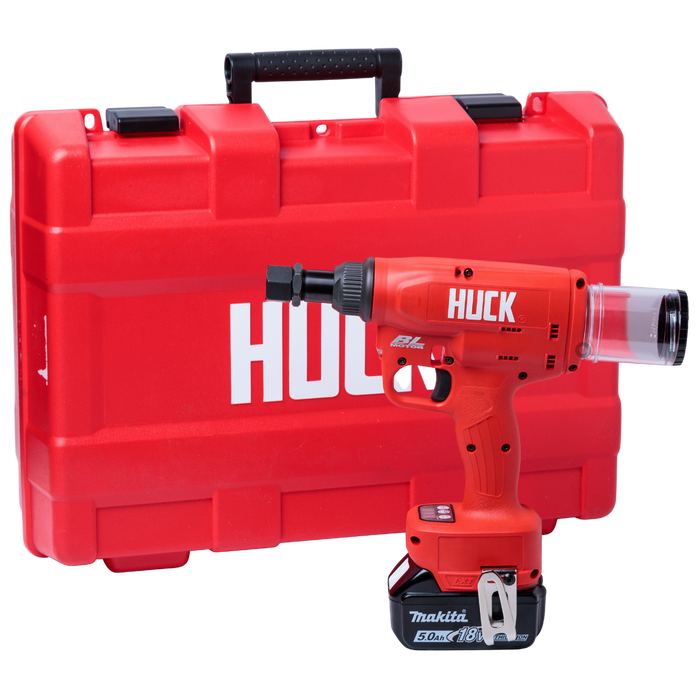

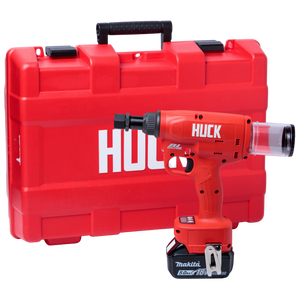

Cordless Huck/Makita Gun BV4500 Tool & Case (without charger/batteries)
- Electronically adjustable pull force.
- Reliable & durable - tested to 50k installs.
- Adjustable pull force & stroke.
- Installs both Huck bolts and rivets*.
- Compatible with Makita® batteries & charger.
- Suitable for Huck nose assemblies*.
Cordless gun for both Huck bolts & Huck structural rivets diameter 4.8 & 6.4 mm (3/16 & 1/4).
NEW to Australia. Huck® has joined forces with Makita® to bring you a powerful battery gun for the installation of both Huck bolt's pin & collar along with Huck structural rivets. The only battery cordless with adjustable pull force control, this tool represents exceptional quality and reliability that has been tested to 50,000 installs. Seeking assistance with Huck gun selection? Go to the Huck gun blog here.
Huck cordless gun key features.
- High quality gun. Made in Japan.
- One trigger installation. LED pilot light.
- Brush less motor. Work harder live longer.
- Installs both Huck bolts and rivets*.
- Compatible with Makita® batteries & charger.
- Suitable for Huck nose assemblies*.
Huck cordless gun technical data. Huck fastener capacity both pin & collar and structural rivets 4.8 mm (3/16') & 6.4 mm (1/4'). Stroke length: 30 mm. Pulling force: 20, 000 K. Weight with 5 Ah battery: 2.5 kg. Pintail bottle capacity: 100 pins. Recharge time: 46 minutes approx. Installations per charge 1500 rivets & 500 Huck bolts Ø 6.4 mm. Dimensions 358 incl. nose X 285 mm (L X H).

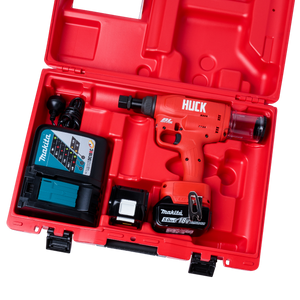

Huck cordless gun is supplied as a complete kit; tool, battery(s), charger 5.0AH, carry case, manual & spare parts list. Otherwise you can purchase tool only (skin) with carry case with manual and spare parts list only. Huck cordless gun require a nose assembly.
| HUCK GUN INSTALLATION GUIDE HG-BV4500AUS |
HUCK FASTENER TYPE | |||||||||
| HUCK STRUCTURAL RIVETS DIAMETER | HUCK BOLTS PIN & COLLAR DIAMETER | |||||||||
| 4.8* | 6.4* | 7.9 | 9.5 | 4.8* | 6.4* | 7.9 | 9.5 | |||
| Aluminium | ✓ | ✓ | ✓ | ✓ | ||||||
| Steel | ✓ | ✓ | ✓ | ✓ | ||||||
| Stainless-Steel | ✓ | ✓ | ✓ | ✓ | ||||||
* Subject to correct nose assemblies. All our tools come with an Australian backed 12 month warranty.
Authorised Huck® Distributor Since 1993. Trust us with Huck®
Cordless Huck Gun Overview.
Understanding Nose Assemblies

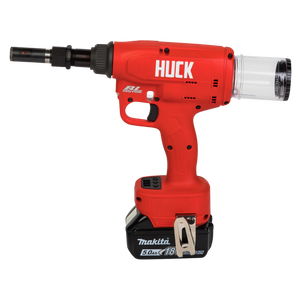

A nose assembly is the prerequisite attachment that installs either Huck bolts or Structural Rivets - in essence, the link between the Huck gun and the fastener. Huck guns require a nose and their selection depends on the tool, fastener, & diameter.
Huck guns and their interchangeable nose assemblies provide the versatility to install either a Structural Rivet or a Pin & Collar Huck bolt. At Aerobolt, we can assist with selection, here is an overview of the popular options associated with the HG-BV4500.
| Fastener Type | Diameter | Nose Assembly Product Code |
| Structural Rivets | 4.8 mm (3/16”) | 99-06HRVT |
| 6.4mm (1/4") | 99-08HRVT | |
| Huck Bolts "MG" | 4.8 mm (3/16”) | 99-06HBLT |
| 6.4mm (1/4") | 99-08HBLT |
Nose Assembly Maintenance.
Keep the nose in good operating condition requires a couple of key tasks:
- Keep nose assembly tight on tool piston.
- Clean nose assembly jaws on a regular basis by removing metal shards from the jaws and other locations with a suitable instrument.
Typical Huck Nose Assembly Cross Section.
Cordless gun for both Huck bolts & Huck structural rivets diameter 4.8 & 6.4 mm (3/16 & 1/4).
