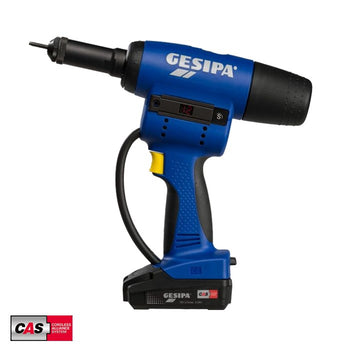

Cordless Rivnut Tool - FireBird PRO for rivnuts up to M10*
Brands you know and trust - Gesipa
Battery Rivnut Gun from Gesipa®. Made in Germany!
The FireBird® Pro cordless rivnut tool is the latest innovation from the inventors of cordless technology. This tool feature a DC brushless motor, long life battery, and faster installation times with a fully adjustable setting force. Clever Huh! FireBird® is powered by a CAS (Cordless Alliance System) battery, this means a longer charge and represents better value than previous Gesipa batteries. * Refer to the technical tab below for more information. Fast. Powerful and virtually maintenance free!
FireBird® Pro can install rivnut sizes M3, M4, M5, M6, M8 & M10*. Material type installations up to M10 aluminium, M8 steel & M6 stainless-steel.
- Simple & fast rivnut installations. LED pilot light.
- Lightweight, balanced and compact in size.
- Semi-automatic action (requires 2 trigger presses for installation).
- Full control with either stroke or setting force.
- Can be suspended, hand held and so much more.
MAIN INCLUSION:

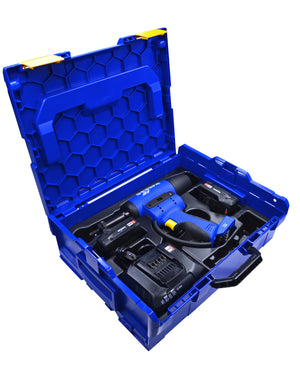

Cordless Gesipa Firebird Pro CAS for rivnuts up to M10* (Tool & Carry Case Only)
(Out of stock)
- Adjustable stroke & setting force.
- Fast & easy mandrel/nose changeover system.
- Shorter setting times with auto wind-on.
- Latest CAS Li-ion battery.
- Hassle-free with less moving parts.
Cordless Battery Rivnut Gun from Gesipa®. Made in Germany!
The FireBird® Pro cordless rivnut tool is the latest innovation from the inventors of cordless technology. This tool feature a DC brushless motor, long life battery, and faster installation times with a fully adjustable setting force. Clever Huh! FireBird® is powered by a CAS (Cordless Alliance System) battery, this means a longer charge and represents better value than previous Gesipa batteries. Fast. Powerful and virtually maintenance free!
Cordless Firebird® Pro rivnut gun features.
- Simple & fast rivnut installations with 15kN pulling force.
- Automatic rivnut wind-on & wind-off function with 10mm stroke.
- Well balanced and compact in size. Can be suspended or hand held.
- Semi-automatic action (requires 2 trigger presses for installation).
- Easy stroke adjuster, sturdy carry case, and so much more.
Firebird® Pro can install rivnuts from M3 to M6 in all material, M8 in steel and M10 in aluminium.
Firebird® Pro technical data. Pulling force; 15.0 kN. Operating voltage; Li-Ion battery 18.0 V DC, 2.1 AH Li-Ion. Recharging time; 50-100 minutes. Stroke;10.0 mm. Weight; 2.3 kg. Dimensions; 287 x 294 mm (H x L).
| CORDLESS RIVNUT TOOL INSTALLATION GUIDE MODEL - FIREBIRD PRO |
RIVNUT THREAD SIZE | ||||||||
| M3 | M4 | M5 | M6 | M8 | M10* | M12 | |||
| Aluminium | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||
| Steel | ✓ | ✓ | ✓ | ✓ | ✓ | ||||
| Stainless-Steel | ✓ | ✓ | ✓ | ✓ | ✓ | ||||
* Struggles with M10 Steel & Stainless nutserts.
FireBird® Pro comes with; 3 nosepieces & threaded mandrels. Additional sizes can be purchased separately. Hexagon screwdriver WAF 4. 2 X double open-ended spanner. WAF 24/27 Quick setting guide Article No. 1699983. Setting force guide Article No. 1699984. 1 X locking screw for HMI cover. Operating manual and parts diagram.
| Gesipa Firebird Pro - Mandrel and nose replacement guide | Gesipa Firebird Pro - Rivet nose assembly conversion guide | Gesipa Firebird Pro - Correct assembly of screw kit |
