Air Rivet Gun for Structural Rivets & Standard Rivets up to 1/4 (6.4 mm) - RAC171

Brands you know and trust - Far

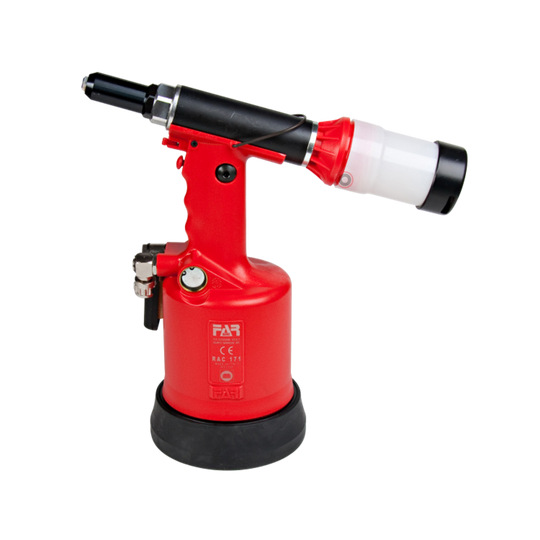

Structural rivet gun RAC171 that also installs standard rivets.

The RAC171 is a heavy duty rivet gun suitable for high volume production workshops. This European rivet gun has numerous features to make your job easier and is ideal for rivet diameters 4.8 mm (3/16) and 6.4 mm (1/4). See the technical tab below for the complete list of rivet sizes and other data. The RAC171 is an easy-to-use tool that installs standard rivets plus structural rivets such as Magna-Lok, Allok, Monobolt, and Orlock rivets. Far pneumatic guns are renowned for being high-quality, professional riveting guns that are trusted and supported by Aerobolt with stocked spare parts. Check out the rivet gun blog for selection information.

Air Rivet Gun by Far key features.

  • Impressive setting force for faster installation.
  • Vacuum rivet holding capacity even in the vertical position.
  • Well balanced, toughened ABS plastic body & rubber base.
  • Vacuum extraction of spent mandrels & collection bottle.
  • Can be suspended or handheld & so much more.

Authorised Far Distributor. Quality Italian Rivet Tools by Far.


SELECT YOUR OPTIONS:

+

Product Code: RT-10171

$1,358.50 Incl. GST

Far® structural rivet gun that also installs standard rivets.

The RAC171 is a heavy duty rivet gun suitable for high volume production workshops. This European rivet gun has numerous features to make your job easier and is ideal for rivet diameters 4.8 mm (3/16" & 6.4 mm (1/4’). See the table below for the complete list of rivet sizes and other data. The RAC171 is an easy-to-use tool that installs standard rivets plus structural rivets such as Magna-Lok®Allok®, Monobolt®, and Orlock® rivets. Far® pneumatic guns are renowned for being high-quality, professional riveting guns that are trusted and supported by Aerobolt with stocked spare parts. Check out the rivet gun blog for selection information.

Air Rivet Gun by Far® key features.

  • Impressive setting force for faster installation.
  • Vacuum rivet holding capacity even in the vertical position.
  • Well balanced, toughened ABS plastic body & rubber base.
  • Vacuum extraction of spent mandrels & collection bottle.
  • Can be suspended or handheld & so much more.

RT-10171 installs standard & structural rivet Ø 4.8 mm (3/16') and 6.4 mm (1/4') in all material including 7.9mm standard rivets in aluminium.

Rivet Gun RT-10171 technical data. Stroke; 25.5 mm. Pulling force 17.3 kN. Weight; 2.8 kg. Dimensions (H X L) 340 x 325 mm. Pressure: 6 bar or 87 psi. Rivet gun comes with; nose tips X 6, spare jaws, wrench, spanner, oil bottle, air fitting & manual.

RIVET GUN
INSTALLATION GUIDE
RT-10171
RIVET DIAMETER
STANDARD RIVETS STRUCTURAL RIVETS
2.4 3.2 4.8 6.4 7.9* 4.8 6.4 7.9* 9.5
Aluminium
Steel
Stainless

* Aluminium only

Authorised Far® Distributor. Quality Italian Rivet Tools by Far.
